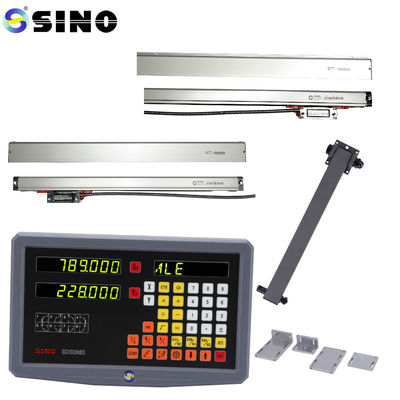

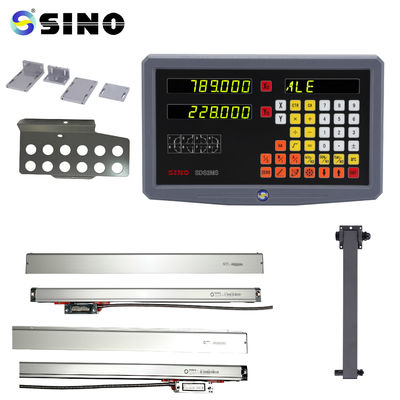

SDS 2MS Digital Readout Kits With Glass Linear Scale For Milling And Lathe Machines TTL 2-Axis Digital Readout Measurement Instrument System

SINO 2 Axis Digital Readout Test Instrument System SDS 2MS DRO Kits Glass Linear Scale For Milling Lathe TTL

Our organization has obtained authorization and passed audits for the ISO 9001 quality management system, ISO 14001 environmental management system, and OHSAS 18001 occupational health and safety management system.

Smooth R :

Arc processing plays a vital role in mold manufacturing. When dealing with workpieces that have simple shapes requiring little arc processing, using a CNC machine for single workpiece setup and machining can be quite expensive and time-consuming.

specifications:

1.The digital display box must be handled with care.
2.Proper grounding of the box is essential.
3.Power voltage selection: AC 100V–240V 50Hz–60Hz
4.Power consumption is 25VA.
5.Operating temperature range: 0°C to 45°C
6.Storage temperature range: -30°C to 70°C
7.Relative humidity: Below 90% at 20±5°C
8.Weight: Approximately 840 grams
9.The box should be kept away from corrosive gases.
10.It has a total of two coordinates.
11.Display: Utilizes an 8-segment character display device, with the information window showing 7 digits including symbols.
12.Frequency multiplication: 4X
13.Acceptable input signal: TTL square wave
14.Maximum allowable input signal frequency: ≤5MHz
15.Length resolution: 5µm, 1µm
16.Operation keyboard: Sealed membrane touch keys

Package list:

1. a piece of the SDS2MS series digital readout

2. a piece of power wire

3. a copy of operating instruction

Detail Information:

Caution:

To prevent electric shock from fire, the machine shall not spray moisture or coolant directly.

All linear scales were tested before delivery. Here is a sample of a scale's test report.

Dear users:

Thank the purchase and use of our products! To make our services make you more satisfied after the purchase, please read the following instructions:

●Products shall be delivered with "Three Guarantees" and 15-day limited replacement and free repair within the period of one warranty year (from date of sale).

Accessories must be complete in replacement: ●The following few services are not free: 1. over one year warranty; 2. abnormal damage due to failure to comply with requirements of using, maintenance, and storage; 3. damage caused by the unauthorized mender; 4. without a valid invoice (except the products can be proved in warranty year); 5. damage caused by an irresistible force.
